Min. Order: 5,000 Square Meters
Production Capacity: 250 Million Square Meters Per Year
Transport Package: 1 PCS/Wrapper, 10PCS/Shrink-Wrap, 200~500PCS/CTN
Payment Terms: L/C, T/T
Application: Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation
Type: Insulation Tape
Chemistry: Inorganic Insulation
Material: PVC
Thermal Rating: 60
Maximum Voltage: <10KV
Model NO.: PVC ELECTRICAL TAPE
Classification: Inorganic Insulation Material
Certification: UL, ISO9001
Color: Red, Yellow, Blue, Green, White, Black
Brand: Yong Yi
Thickness: 0.13mm and 0.18mm
Usable Width: 1250mm
Trademark: YONG YI
Specification: 1250mm*18.2m/9.1m/7.3m or 18mm*18.2m/9.1m/7.3m
Origin: China
HS Code: 39199090

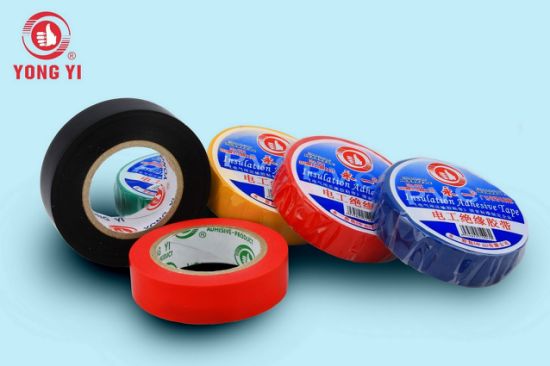

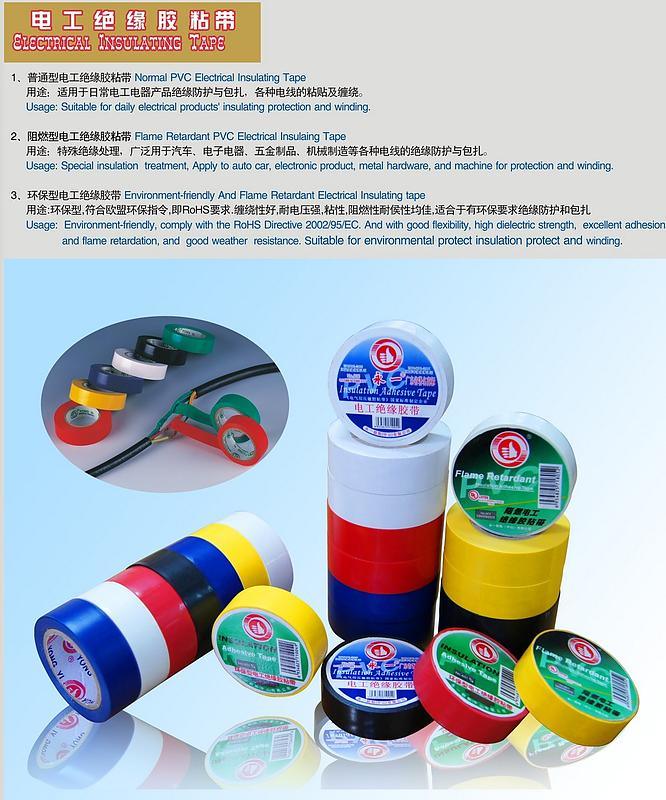

PVC Electrical Insulating Tape
Total Thickness: 0.13mm & 0.18mm
Elongation at break ≥180%
Feature: Good flexibility and high tensile strength.
Adhesive: Rubber type pressure sensitive adhesive.
Dielectric strength≥5KV/min
Application: Used for insulating packing of electric wire.
PRODUCT 130u PVC ELECTRICAL TAPE
Physical Properties
Material Soft PVC film Thickness 130±10um
Tensile strength MD≥18 ( N/cm ), TD≥12 ( N/cm ) Elongation at break ≥180%
Color black \ white \ red \ yellow \ green \ blue
PRODUCT 180u PVC ELECTRICAL TAPE
Physical Properties
Material Soft PVC film Thickness 180±10um
Tensile strength MD≥28 ( N/cm ), TD≥20 ( N/cm ) Elongation at break ≥250%
Color black \ white \ red \ yellow \ green \ blue
