Min. Order: 5,000 Square Meters
Production Capacity: 250 Million Square Meters Per Year
Transport Package: 1 PCS/Wrapper, 10PCS/Shrink-Wrap, 200~500PCS/CTN
Payment Terms: T/T
Application: Winding Wire Coating Insulation, Insulating Packing of Electric Wire
Type: Insulation Tape
Chemistry: Inorganic Insulation
Material: PVC
Thermal Rating: 0-60
Maximum Voltage: 5kv~6kv
Basic Info
Model NO.: pvc electircal insulating tape Classification: Inorganic Insulation Material Color: Black, Red, Yellow, Blue, Green, White Total Thickness: 0.13mm and 0.18mm Usable Width for Log Size: 1250mm Trademark: YONG YI Specification: 1250mm*18.2m/9.1m/7.3m or 18mm*18.2m/9.1m/7.3m Origin: China HS Code: 39199090

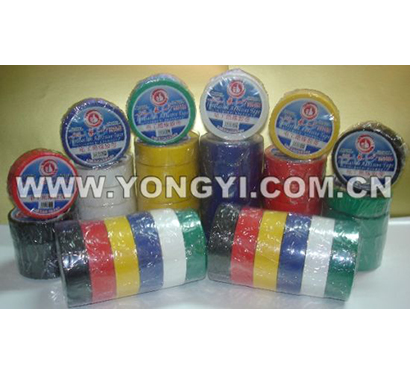

Product Description
Total Thickness: 0.13mm & 0.18mm
Elongation at break ≥ 180%
Feature: Good flexibility and high tensile strength.
Adhesive: Rubber type pressure sensitive adhesive.
Dielectric strength≥ 5KV/min
Application: Used for insulating packing of electric wire.
PRODUCT 130u PVC ELECTRICAL TAPE
Physical Properties
Material Soft PVC film Thickness 130±10um
Tensile strength MD≥18 ( N/cm ), TD≥12 ( N/cm ) Elongation at break ≥180%
Color Black , white , red , yellow , green , blue
PRODUCT 180u PVC ELECTRICAL TAPE
Physical Properties
Material Soft PVC film Thickness 180±10um
Tensile strength MD≥28 ( N/cm ), TD≥20 ( N/cm ) Elongation at break ≥250%
Color Black , white , red , yellow , green , blue
